How to Select Marine Batteries (7 Key Factors)

Your Comprehensive Guide to Choosing the Best Lithium Battery for Boats and Yachts

Selecting the right marine battery is critical for ensuring safety, reliability, and optimal performance on the water. With advancements in lithium battery technology, boat owners now have access to superior alternatives to traditional lead-acid batteries. This guide explores 7 key factors to consider when choosing marine batteries, with a focus on LiFePO4 (Lithium Iron Phosphate) systems like the YZPOWER 12V100Ah LiFePO4 Deep Cycle Battery—a top choice for marine applications due to its 5,000+ cycles, IP67 waterproof rating, and Bluetooth BMS monitoring.

1. Battery Chemistry: Why LiFePO4 Dominates Marine Applications

1.1 Lead-Acid vs. LiFePO4: A Performance Comparison

• Energy Density: LiFePO4 batteries provide 125–150 Wh/kg, outperforming lead-acid’s 30–50 Wh/kg.

• Cycle Life: A quality LiFePO4 battery (e.g., YZPOWER 12V100Ah) delivers 5,000+ cycles at 80% Depth of Discharge (DoD), compared to 300–500 cycles for AGM batteries.

• Weight Reduction: Replacing a 200Ah lead-acid bank with a 100Ah LiFePO4 system cuts weight by 60%—critical for fuel efficiency.

Pro Tip: Always verify if the battery meets *ABYC TE-13* standards for marine lithium installations.

1.2 Thermal Stability & Safety

LiFePO4’s olivine structure prevents thermal runaway, making it ideal for marine environments. For example, the YZPOWER 12V100Ah passes nail penetration, crush, and overcharge tests (see Safety Certifications).

2. Capacity & Voltage: Sizing Your Marine Battery Bank

2.1 Calculating Energy Needs

Use this formula to estimate daily consumption:

Total Daily Load (Wh)=∑(Device Power (W)×Hours Used)

For a typical 12V system:

• Navigation electronics: 50W × 8h = 400Wh

• Refrigeration: 100W × 24h = 2,400Wh

• Total: 2,800Wh → 233Ah @ 12V

Recommendation: Add a 30% buffer. A 12V300Ah LiFePO4 bank (3× YZPOWER 12V100Ah) supports most mid-sized yachts.

2.2 Voltage Compatibility

• 12V Systems: Standard for small to medium vessels.

• 24V/48V Systems: Better for high-power demands (e.g., electric thrusters).
  Ensure your battery supports voltage customization (e.g., series/parallel configurations).

3. Battery Management System (BMS): The Brain of Your Power System

3.1 Critical BMS Functions

A marine-grade BMS should include:

• Cell Balancing: Prevents voltage drift (critical for longevity).

• Temperature Monitoring: The YZPOWER 12V100Ah operates at -20°C to 55°C with automatic cutoffs.

• Bluetooth Connectivity: Real-time tracking of SOC, SOH, and faults via apps.

Case Study: A 40ft catamaran using YZPOWER batteries reduced cell imbalance issues by 90% compared to non-BMS systems.

3.2 Waterproof Ratings

Look for IP67 or higher (submersion protection up to 1m/30min). The YZPOWER 12V100Ah’s IP67 enclosure withstands saltwater spray and humidity.

4. Environmental Resilience: Surviving Marine Conditions

4.1 Corrosion Resistance

• Enclosure Materials: Marine-grade aluminum alloys (e.g., YZPOWER’s powder-coated casing).

• Terminal Protection: Copper terminals with anti-corrosive grease.

4.2 Vibration & Shock Resistance

Verify compliance with:

• ISO 10143 (marine vibration standards)

• IEC 60068-2-6 (sinusoidal vibration testing)

The YZPOWER 12V100Ah passes 1.5m drop tests and 13KN crush tests—key for rough seas.

5. Certifications & Compliance

5.1 Mandatory Marine Certifications

• UN38.3: Required for air/sea transportation.

• CE/RoHS: EU compliance for environmental safety.

• ABYC E-11 & TE-13: US standards for marine electrical systems.

5.2 Industry-Specific Testing

• Salt Spray Test: 720+ hours (simulates 10+ years of exposure).

• Thermal Shock Test: -40°C ↔ +75°C cycling (validates temperature resilience).

6. Weight & Space Optimization

6.1 Weight Savings Analysis

Replacing a 200Ah lead-acid bank (≈120kg) with a *12V100Ah LiFePO4* (≈12.5kg) saves 107.5kg—equivalent to 2 passengers or 200L fuel.

6.2 Compact Designs

Compare dimensions:

• YZPOWER 12V100Ah: 329×172×233mm

• Typical AGM: 400×200×300mm

Use modular designs for tight engine rooms.

7. Brand Reputation & Support

7.1 Warranty Considerations

• Standard: 3–5 years (prorated after Year 2).

• Premium: YZPOWER offers 7-year warranties with 24/7 technical support.

7.2 After-Sales Services

• Battery Monitoring Apps: Track performance remotely.

• Custom Solutions: OEM/ODM services for large fleets.

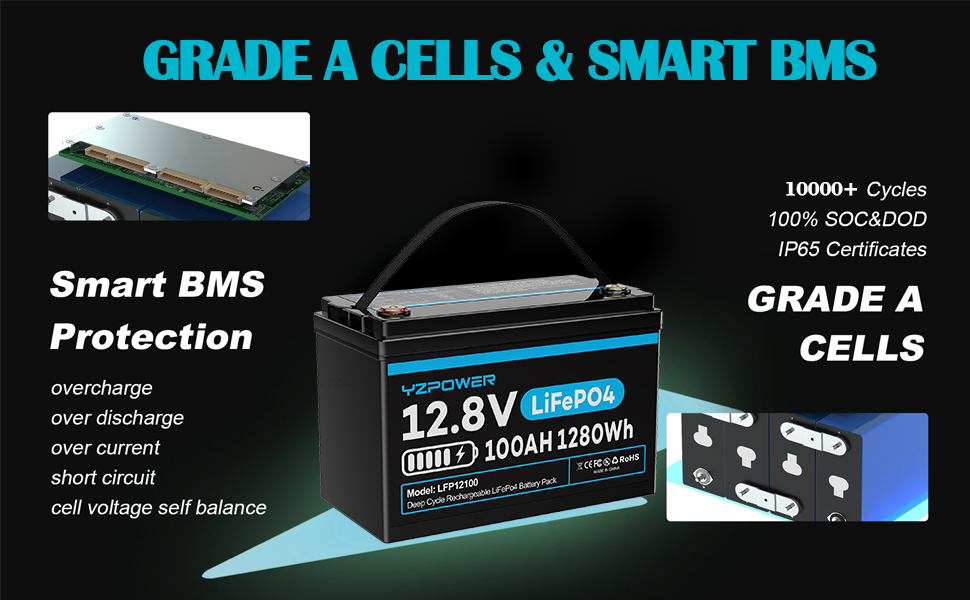

Why Choose YZPOWER 12V100Ah LiFePO4 Marine Battery?

1. Proven Durability: 5,000+ cycles @ 80% DoD (independently verified).

2. Smart Monitoring: Bluetooth BMS with SOC/SOH tracking (Learn More).

3. Global Compliance: CE, UN38.3, and RoHS certified.
